TERADEK BOLT 6 LT MAX

WIRELESS TRANSMISSION OVERVIEW

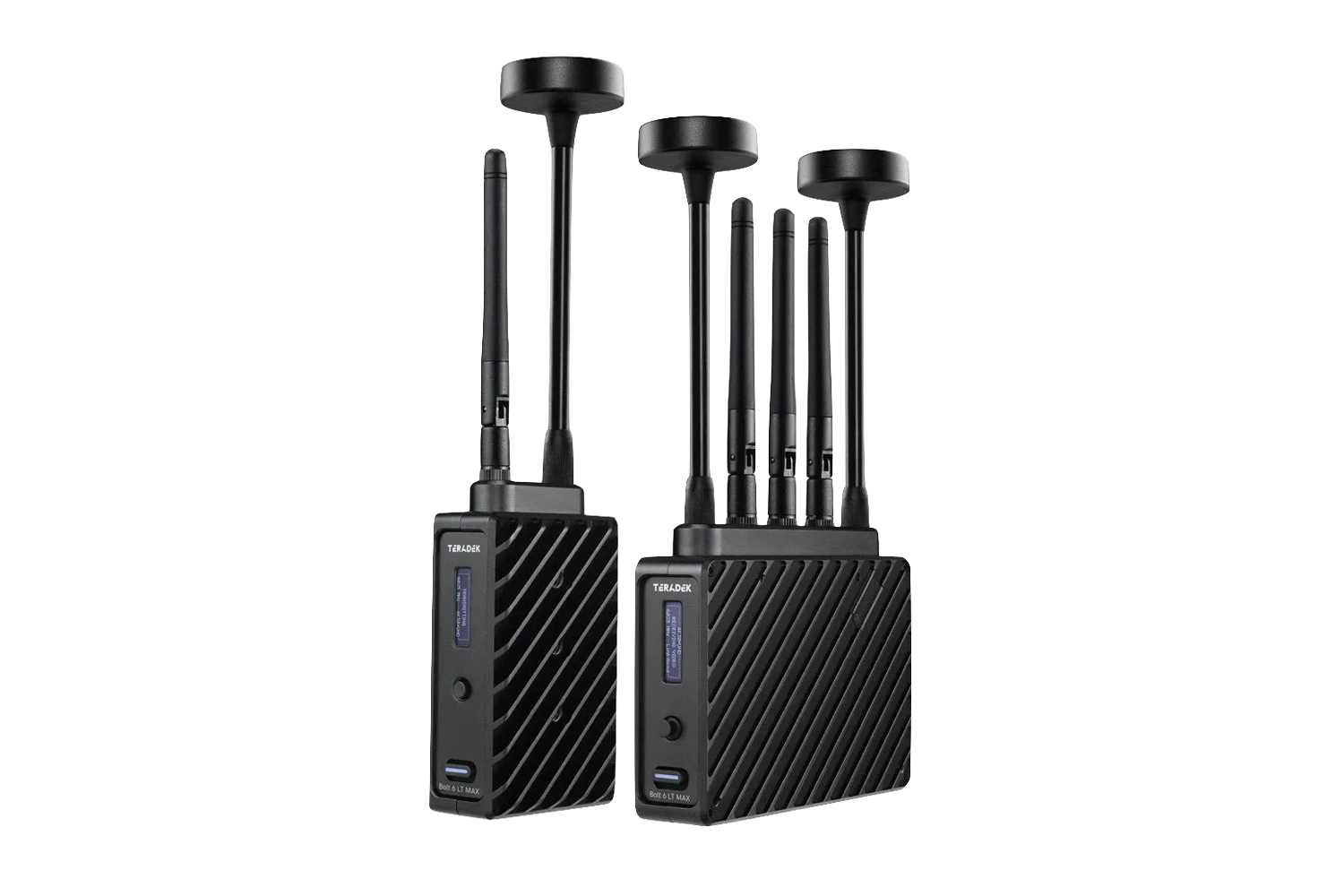

The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive colour-accurate, True-HDR videos in under 0.001 milliseconds using the set’s included Bolt 6 LT video Transmitter and Receiver.

Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilises the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

SPECS

  • < 0.001 sec (without format conversions)

  • 914m (Line-of-Sight)

    1524m (with Panel Antenna)

  • 4Kp23.98/24/25/29.97/30 (HDMI only)

    1080p23.98/24/25/29.97/30/50/59.94/60

    1080psf23.98/24/25/29.97/30

    1080i50/59.94/60

    720p50/59.94/60

    480p59.94

    576p50

    480i(NTSC)/576i(PAL)

  • Bolt 6 LT MAX TX

    Video Inputs

    3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle

    Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

    Antennas

    2 External 2dBi antennas (included)

    Bolt 6 LT MAX RX

    Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle

    Antennas

    5 External 2 dBi antennas (included)

  • SDI: YCbCr 4:2:2, 10-bit

    HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Audio Input (TX Only)

    Embedded SDI/HDMI Audio Input (2 Channel)

    Audio Output (RX Only)

    Embedded SDI/HDMI Audio Output (2 Channel)

    Audio Compression

    48kHz 24-bit PCM

  • Frequencies

    Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz

    DFS Frequencies: 5.270 ~ 5.670 GHz

    RF Channel Selection

    Auto, Manual

    Encryption

    AES-256, RSA-1024 key exchange

    Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones

    Can operate up to 6 sets in same location

  • Bolt 6 LT MAX TX

    23 dbm EIRP

    Bolt 6 LT MAX RX

    21 dBm EIRP

  • Power Input

    2-Pin Circular locking connector 6-28 VDC

    Nominal Power Consumption

    Bolt 6 LT MAX TX: 9 Watts

    Bolt 6 LT MAX RX: 11 Watts

    Operating Temperature

    Bolt 6 LT MAX TX: 0-40°C

    Bolt 6 LT MAX RX: 0-40°C

  • Dimensions

    Bolt 6 LT MAX TX: 60 × 103 x 33 mm

    Bolt 6 LT MAX RX: 122 × 94 x 27 mm

    Weight

    Bolt 6 LT MAX TX: 206 g

    Bolt 6 LT MAX RX: 292 g
