ARRI CFORCE MINI RF

FOLLOW FOCUS OVERVIEW

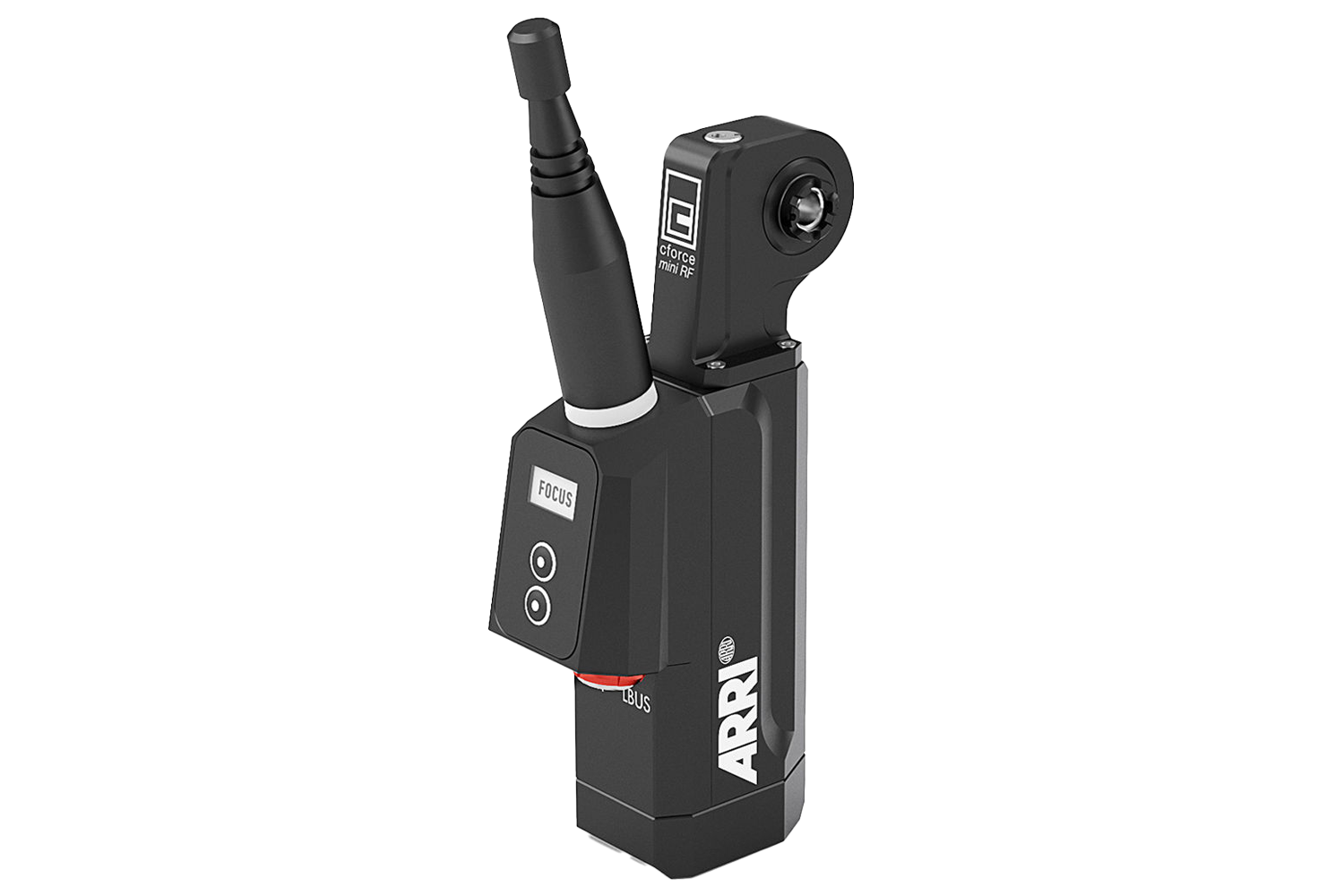

The ARRI cforce mini RF Motor Unit is a compact lens-control motor with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig.

Key Features

  • Built-In White-Coded RF Module

  • Eliminates Need for Separate Receiver

  • Motor Unit Only

  • Requires Gear, Cable, & Bracket

  • 14 Radio Channels

  • Adjusts Lens Focus, Iris, or Zoom

  • Power & Run/Stop via CAM Connector

  • Daisy-Chains with Classic cforce Motors

  • Daisy-Chains with LBUS Devices

  • Compatible with WCU-4 Hand Unit

SPECS

  • ARRI WCU-4

    ARRI SXU-1

    Legacy white-coded radio controllers

  • 1 x 19mm Rod Clamp

    1 x 15mm Rod Clam with Reducer

  • Daisy-chainable via LBUS

    Up to 1.5km range

    14 radio channels

  • Power Source: Camera

    DC Input Power: 12 to 34 VDC

    Operating Current: 6 A

  • Dimensions (with antenna): 142 x 96 x 36mm

    Weight (with gear and clamp): 153g
