TERADEK BOLT 6 1500 XT (12G)

WIRELESS TRANSMISSION OVERVIEW

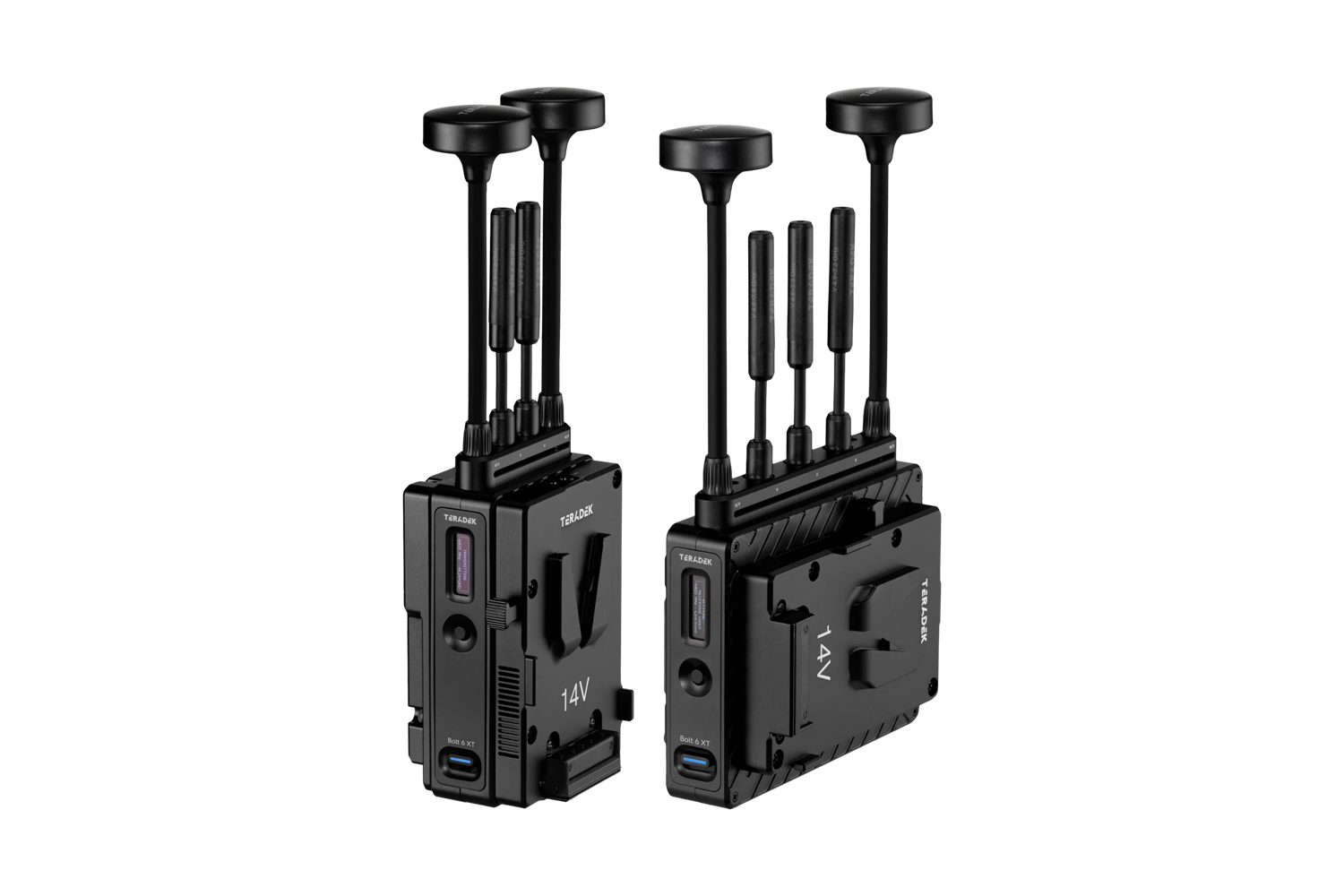

Transmit and receive lossless HD video from up to a 1500' line of sight with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power each unit with a professional V-Mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

SPECS

  • < 0.001 sec

  • Up to 1500 ft, line of sight

  • 4Kp23.98/24/25/29.97/30/50/59.94/60

    1080p23.98/24/25/29.97/30/50/59.94/60

    1080psf23.98/24/25/29.97/30

    1080i50/59.94/60 720p50/59.94/60

  • Bolt 6 LT 1500 XT TX

    Video Inputs

    12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle

    Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)

    Antennas

    4 External 2dBi antennas (included)

    Bolt 6 LT MAX RX

    Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle

    Antennas

    5 External 2 dBi antennas (included)

  • SDI: YCbCr 4:2:2, 10-bit

    HDMI: RGB 4:4:4, 8-bit

  • Audio Input (TX Only)

    Embedded SDI/HDMI Audio Input (2 Channel)

    Audio Output (RX Only)

    Embedded SDI/HDMI Audio Output (2 Channel)

    Audio Compression

    48kHz 24-bit PCM

  • Frequencies

    Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz

    DFS Frequencies: 5.270 ~ 5.670 GHz

    RF Channel Selection

    Auto, Manual

    Encryption

    AES-256, RSA-1024 key exchange

    Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones

    Can operate up to 6 sets in same location

  • Bolt 6 LT MAX TX

    23 dbm EIRP

    Bolt 6 LT MAX RX

    21 dBm EIRP

  • Power Input

    2-Pin Circular locking connector 6-28 VDC

    Nominal Power Consumption

    Bolt 6 LT 1500 XT TX: 20 Watts

    Bolt 6 LT 1500 XT RX: 18 Watts

    Operating Temperature

    Bolt 6 LT 1500 XT TX: 0-40°C

    Bolt 6 LT 1500 XT RX: 0-40°C

  • Dimensions

    Bolt 6 LT 1500 XT TX: 132 × 91 × 27 mm

    Bolt 6 LT 1500 XT RX: 112 × 139 x 27 mm

    Weight

    Bolt 6 LT 1500 XT TX: 344 g

    Bolt 6 LT 1500 XT RX: 430 g
