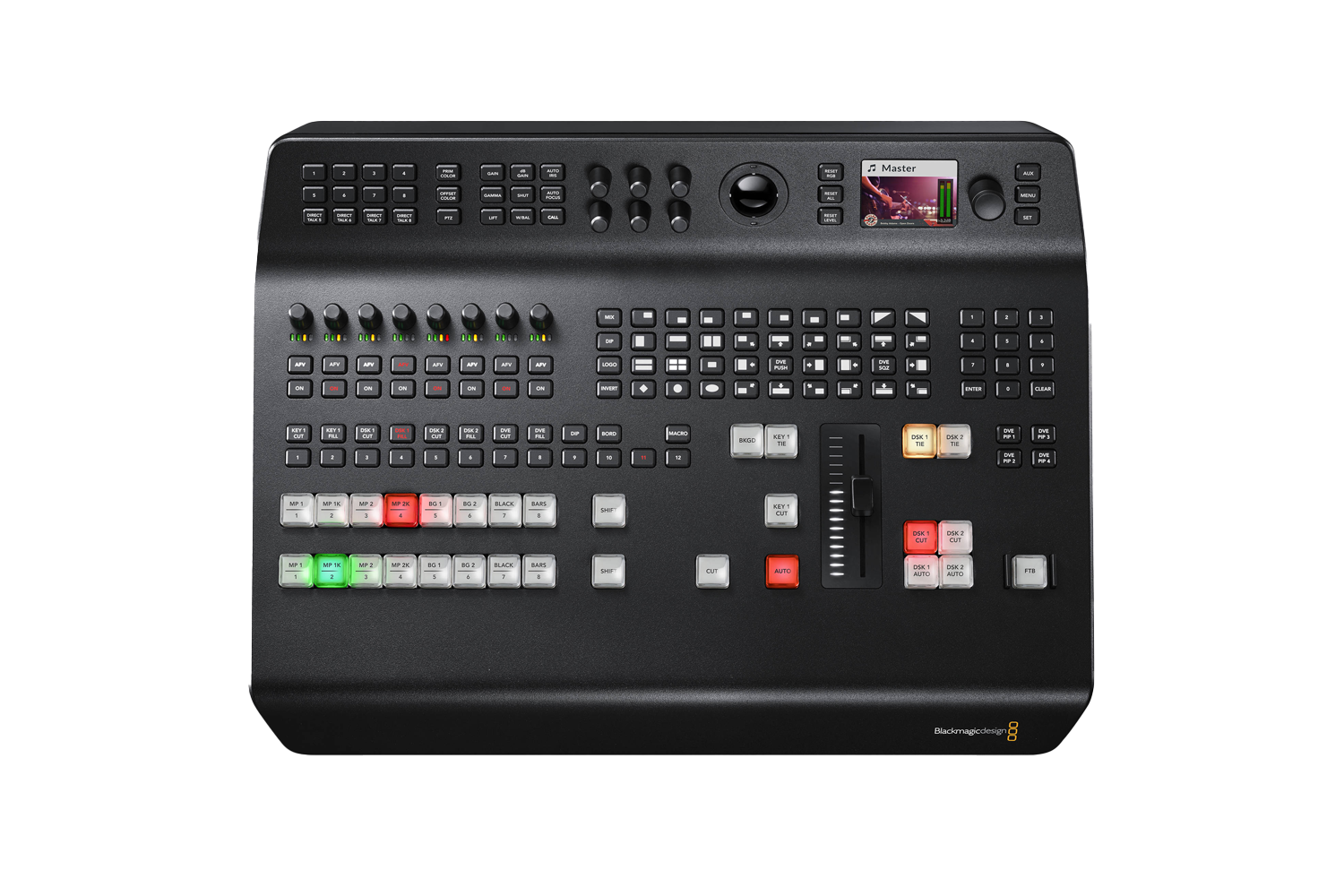

BLACKMAGIC DESIGN ATEM TELEVISION STUDIO PRO 4K SWITCH

STREAMING OVERVIEW

The Blackmagic Design ATEM Television Studio Pro 4K is a UHD 4K-compatible, 8-input live production switcher with an integrated control panel, suitable for broadcast, sports, web, and A/V productions. This versatile switcher's eight independent 12G-SDI inputs accept all popular HD and UHD signals up to 2160p60. A re-syncing feature on each input enables you to seamlessly use an amalgam of pro and consumer cameras, game consoles, and computer feeds.

SPECS

  • Inputs

    12G/HD/SD-SDI: 8 x BNC

    Audio: 2 x 3-Pin XLR

    Reference: 1 x BNC

    Outputs

    12G/HD/SD-SDI: 8 x BNC

    Auxiliary: 1 x BNC

    Program: 1 x BNC

    Multiview: 1 x BNC

    Multiview: 1 x HDMI

    Headphone: 1

    Other

    1 x RS-422

    1 x Ethernet

    1 x USB 2.0

    1 x AC Power In

    1 x 4-pin XLR Power In

  • Format Support

    UHD Video:

    2160p: 59.94/50/29.97/25/24/23.98

    HD Video:

    1080p: 59.94/50/29.97/25/24/23.98

    1080i: 59.94/50

    720p: 59.94/50

    Input Resolutions for Computers

    2160p: 59.94/50/30/29.97/25/24/23.98

    1080p: 59.94/50/30/29.97/25/24/23.98

    1080i: 60/59.94/50

    720p: 59.94/50

    SDI Compliance

    292M, 424M

    2081, 2082

    Video Sampling

    4:2:2, 10-Bit

    Colour Precision

    4:2:2, 10-Bit

    Colour Space

    4:2:2 YUV

    Colour Space Conversion

    None

    Processing Delay

    6 Lines

  • Audio Mixer

    12-Input x 2-Channel Mixer

    Keyers

    Upstream: 1 with Chroma/Linear/Luma Key

    Downstream: 2

    Chroma: 1

    Linear/Luma: 3

    Transition (Stinger/DVE): 1

    Layers

    Up to 5

    Generators

    Pattern: 2

    Color: 2

    DVE

    Border and Drop Shadow: 1

    Number of Windows

    Multiview: 1 x 10

    Routable: 8

    Fixed, Program, and Preview: 2

    Media Player

    Players: 2 (Non-Volatile Flash Memory)

    Media Pool Still Image Capacity: 20 (with Fill and Key)

    Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF

    Channels: Fill and Key for Each Media Player

    Media Pool Clip Capacity: 2 (with Fill and Key / Shared Pool)

    Media Pool Clip File Format: TGA Sequence

    Media Player Clip Length:

    UHD 4K: 90 Frames

    1080 HD: 360 Frames

    720 HD: 1440 Frames

    Media Pool Audio File Format: WAV, MPE, AIFF

    Compatible Operating Systems

    MacOS 10.12 Sierra

    MacOS High Sierra 10.13 or Higher

    Windows 8.1 or 10

  • Power Supply

    AC: 110-240 VAC Internal

    DC: 1 x 4-Pin XLR

    Power Draw

    70 W

  • Dimensions

    42.29 x 30.2 cm

    Weight

    Not Specified by Manufacturer
