RED DSMC3 V-RAPTOR 8K S35

THE CAMERA

Experience the pinnacle of cinematic excellence with the RED DSMC3 V-Raptor 8K S35. This cutting-edge camera package delivers unrivaled image quality thanks to its 8K Super 35mm sensor, capturing breathtaking detail and vibrant colours. With high-speed performance and a maximum frame rate of up to 240 fps, it's the perfect choice for capturing dynamic action sequences with remarkable precision and fluidity. Elevate your filmmaking projects to new heights with the RED DSMC3 V-Raptor 8K S35.

SPECS

  • V-RAPTOR™ 8K S35 35.4 Megapixel CMOS

  • 8192 x 4320

  • 26.21 mm x 13.82 mm (Diagonal: 29.63 mm)

  • 16.5+ stops

  • Integrated RF mount with RF lens support

    Supports Canon EF lenses via compatible Canon RF to EF mount adapters

    Accepts other Canon RF mount-based lens adaptors for diverse lens choices

  • Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)

    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)

    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)

    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)

    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)

    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)

    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps

    REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps

    REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps

    REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps

    REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps

    REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

  • Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)

    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)

  • Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

    Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

  • Image Processing Pipeline 2 (IPP2)

    Supports 33×33×33 3D LUTs

    Supports import of CDLs

  • 11-17 V via 6-pin DC-IN

  • 4.00 lbs (without body cap and CFexpress card)

“THE RAPTOR IS AN ELEVATED VERSION OF THE KOMODO - A LITTLE BIGGER WITH MORE HORSEPOWER IN ITS HUGE SENSOR.”

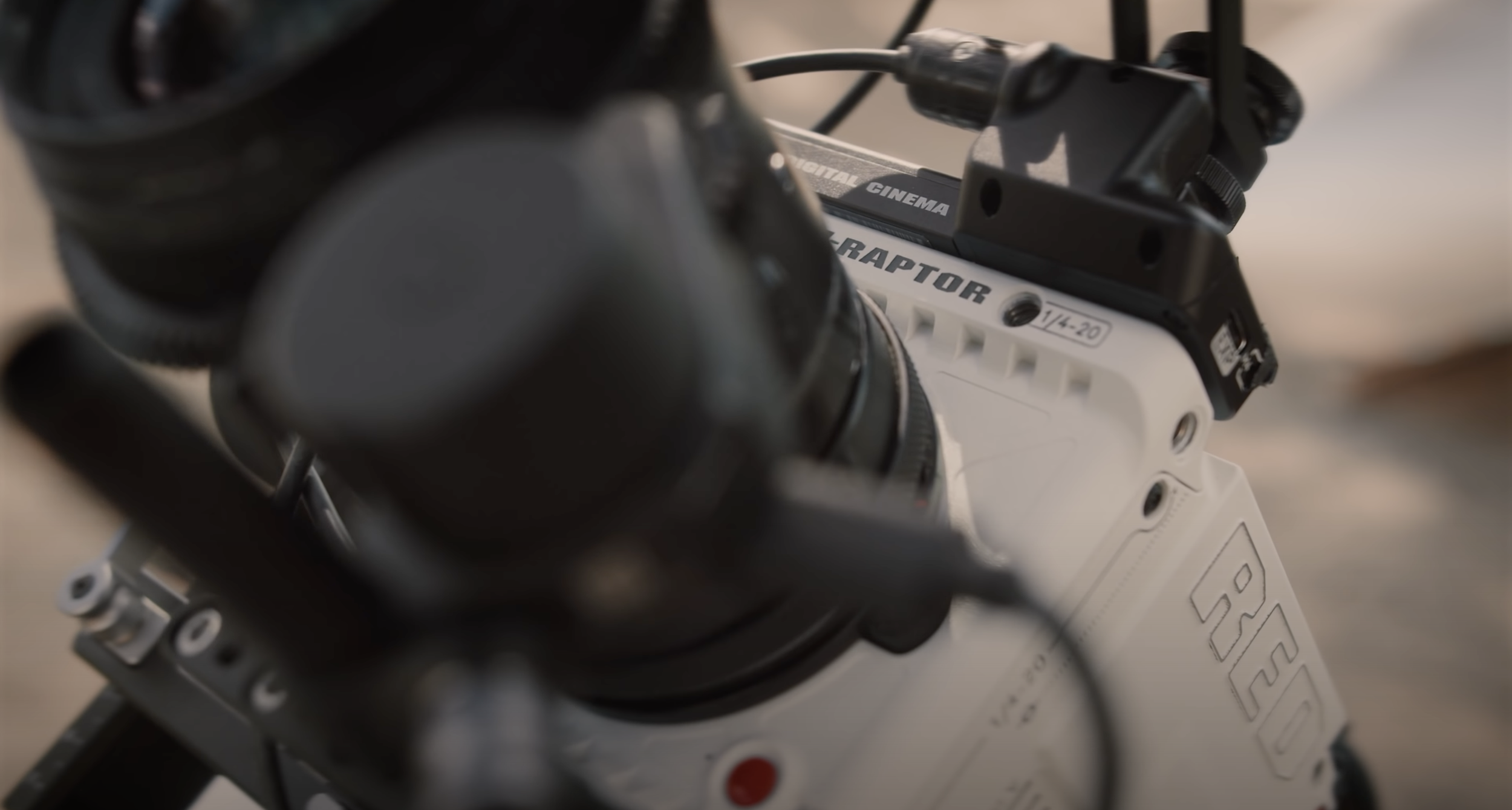

DJI RS3 PRO + RED V-RAPTOR // CINEMATIC SHORT FILM

Runtime: 15:46

 RED DSMC3 V-RAPTOR 8K S35

Enquire
